What is Surface Mounted Portable Road Blocker?

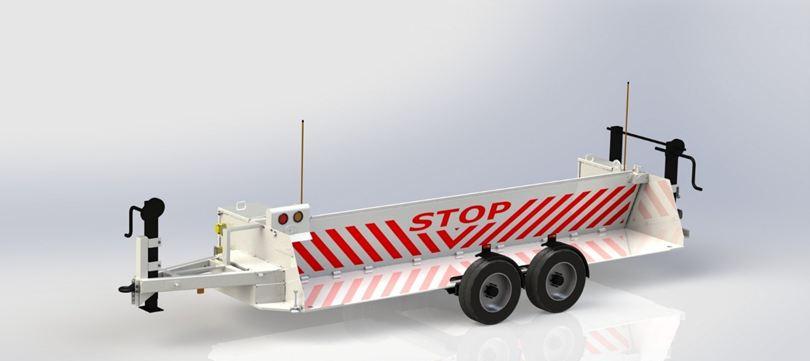

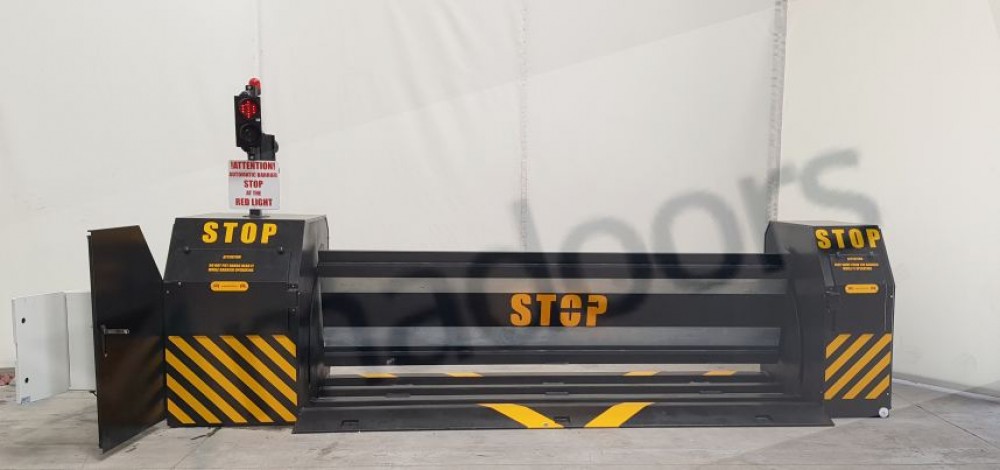

Surface Mounted Portable Road Blocker

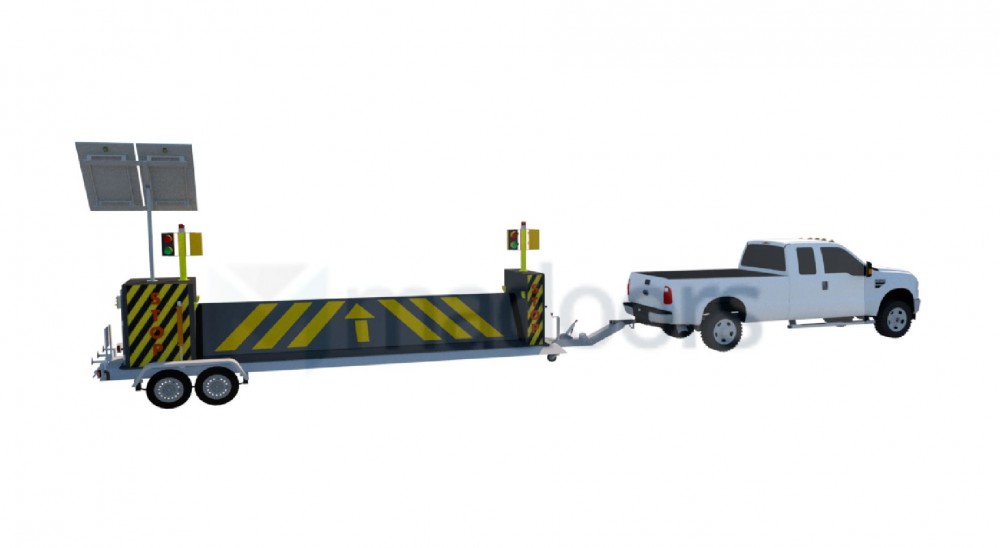

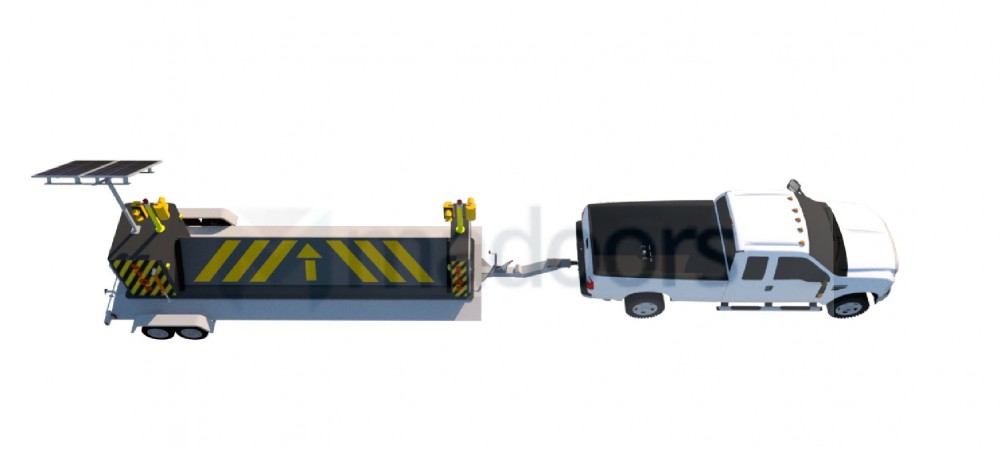

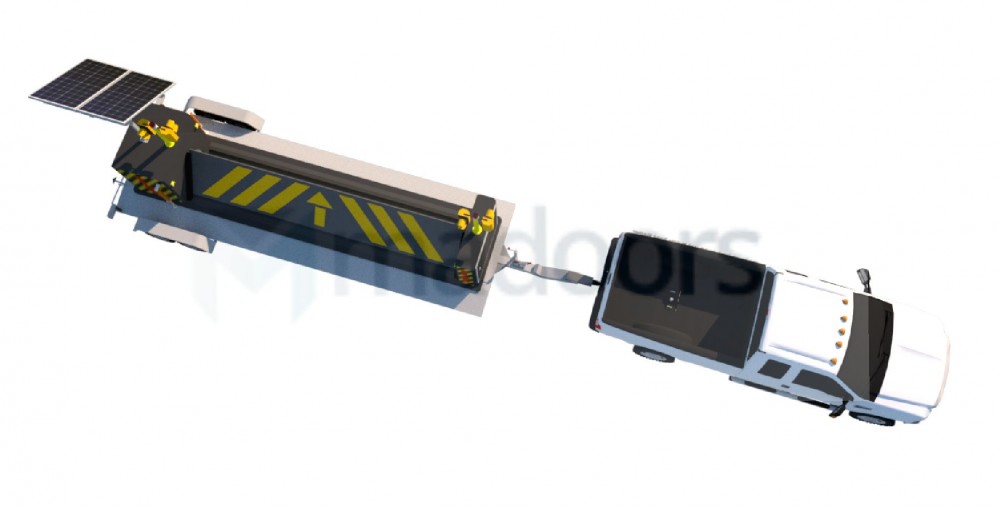

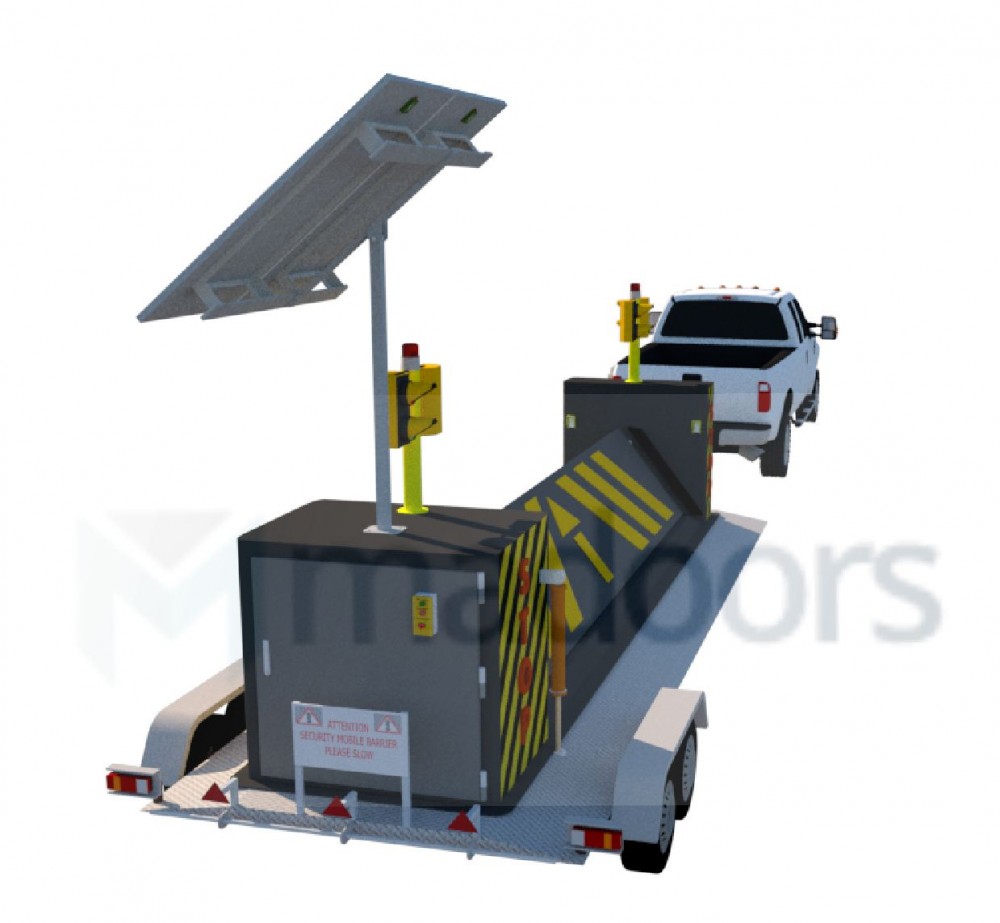

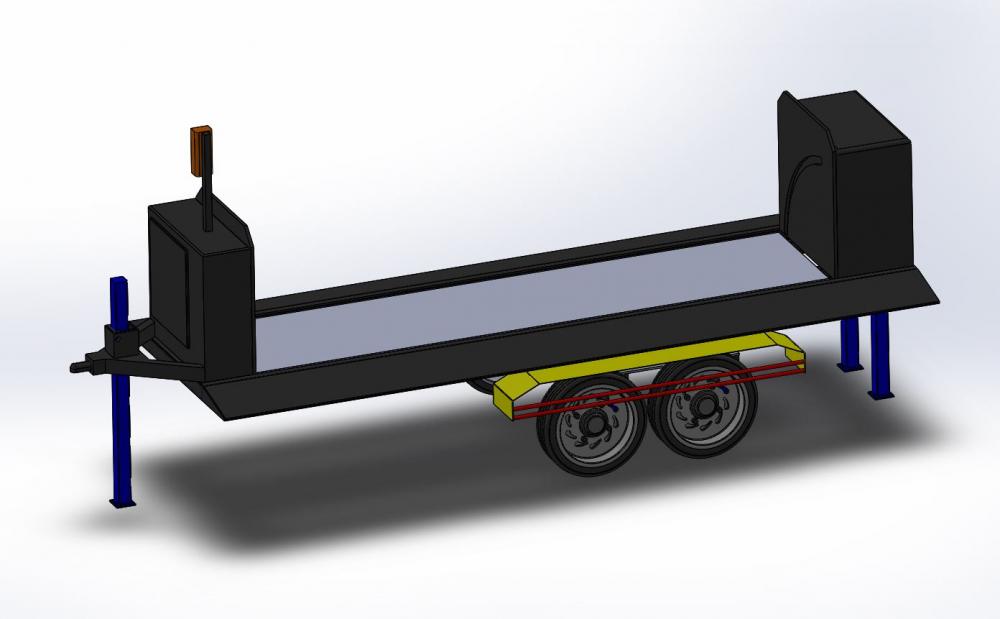

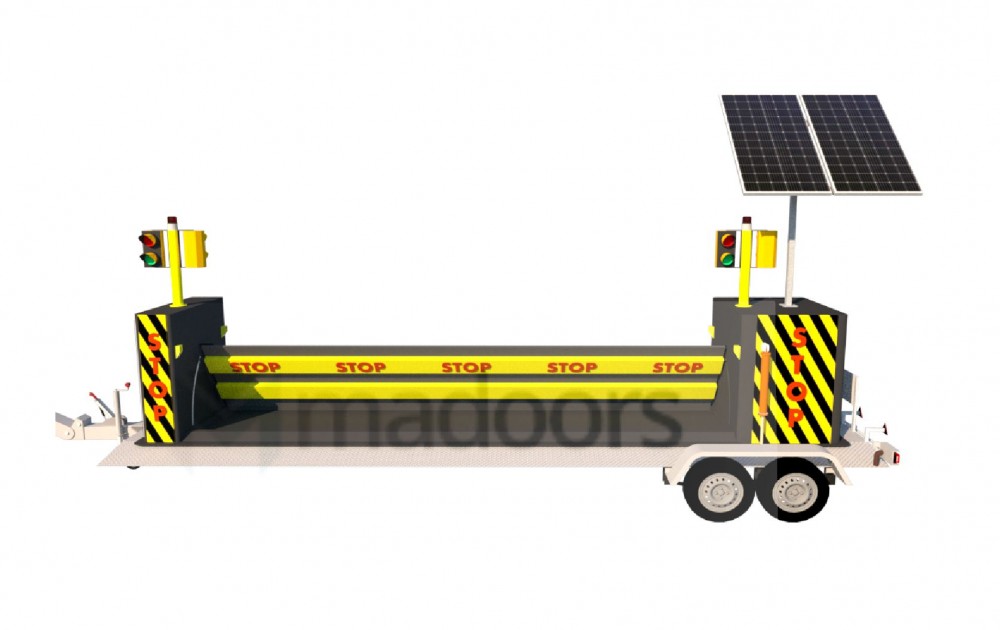

Mobile Portable Automatic Road Blocker

Surface Type Portable Mobile Road Blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. If there is a threat of vehicle attack in addition to the control of vehicle access in high security applications, hydraulic road blockers are the unique solution and the most secure systems. Even though the attack is from high tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving because of the damage given to front, wheels and the bottom of the vehicle.

A surface type portable mobile road blocker is installed directly on the road, therefore it does not need any excavation or civil works. Madoors road blockers are designed to K12 standards. Finite element model analyses are available upon request. Drive unit is electro-hydraulic, but in case of power failure road blocker can be lowered or lifted manually with the help of manual hand pump. Typical raise/lower time is 3 seconds. In case of emergency, raise/lower time can be as low as 1.5 seconds. With the help of PLC (programmable logic control), raise/lower function can be achieved by every kind of card readers, biometric readers like fingerprint or hand shape, radio control, on/off key switch etc. Besides, safety accessories like photocells, inductive loop detectors, flashing lights or red/green traffic lights can be integrated to the system very easily. Typical weight of a road blocker is 2-2.5 tons (depending on road blocker type).

Portable Mobile Road Blocker Features

  • Industrial hydraulic pump drive unit
  • Motor protection
  • Programmable logic control system
  • LED Traffic Light
  • Override Switch Switched fused supply
  • Mains indicator lamp
  • Reinforced hoses for long service life
5

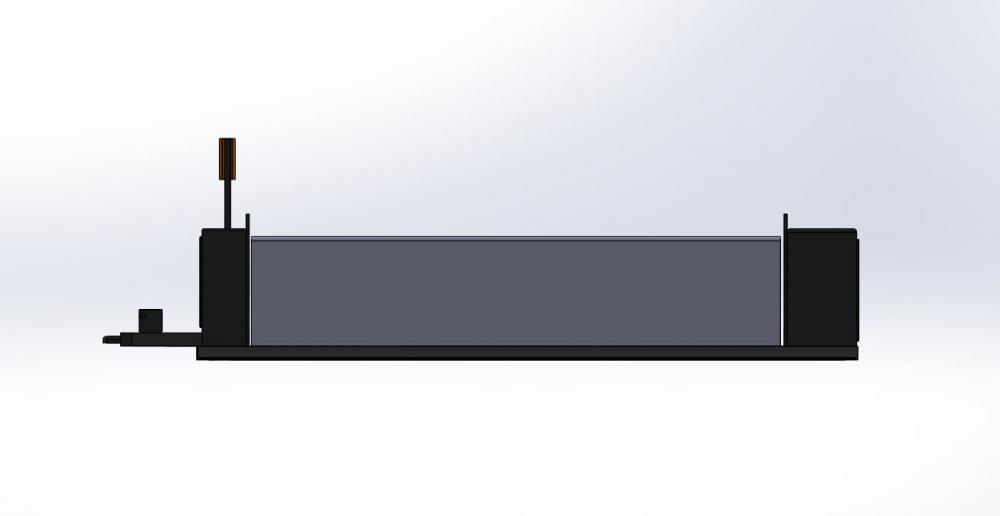

Surface Mounted Portable Road Blocker

10

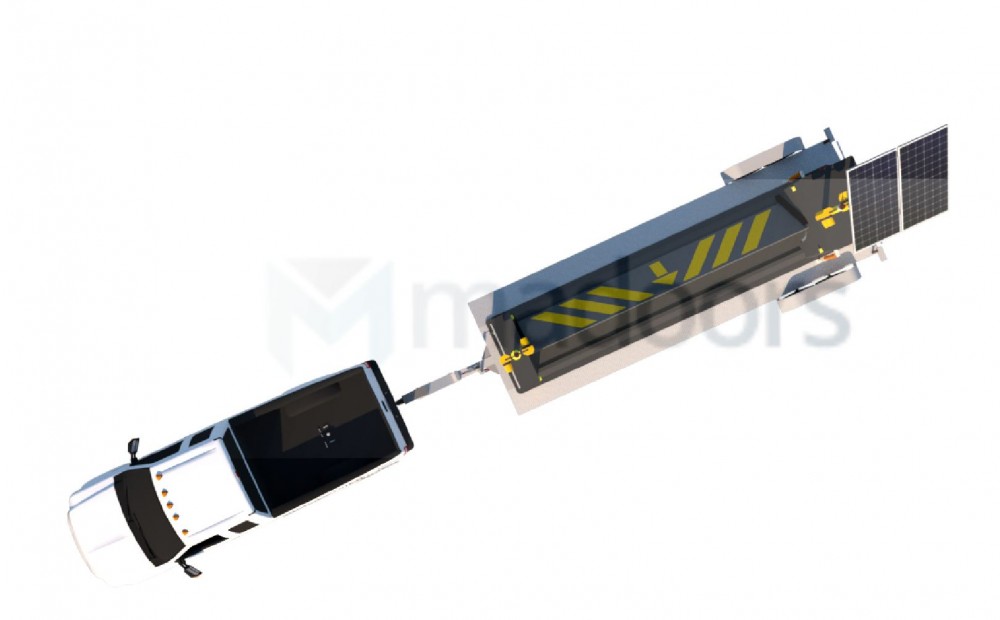

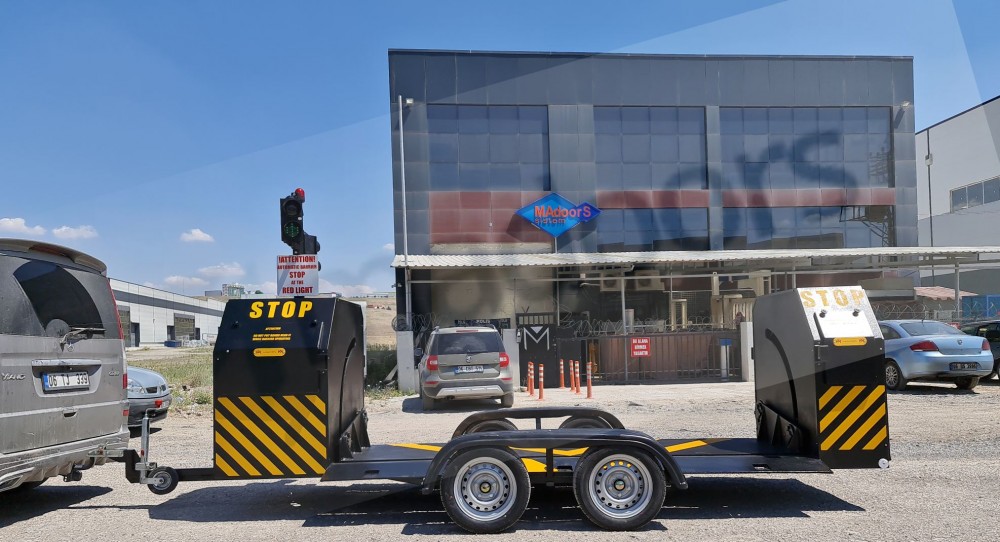

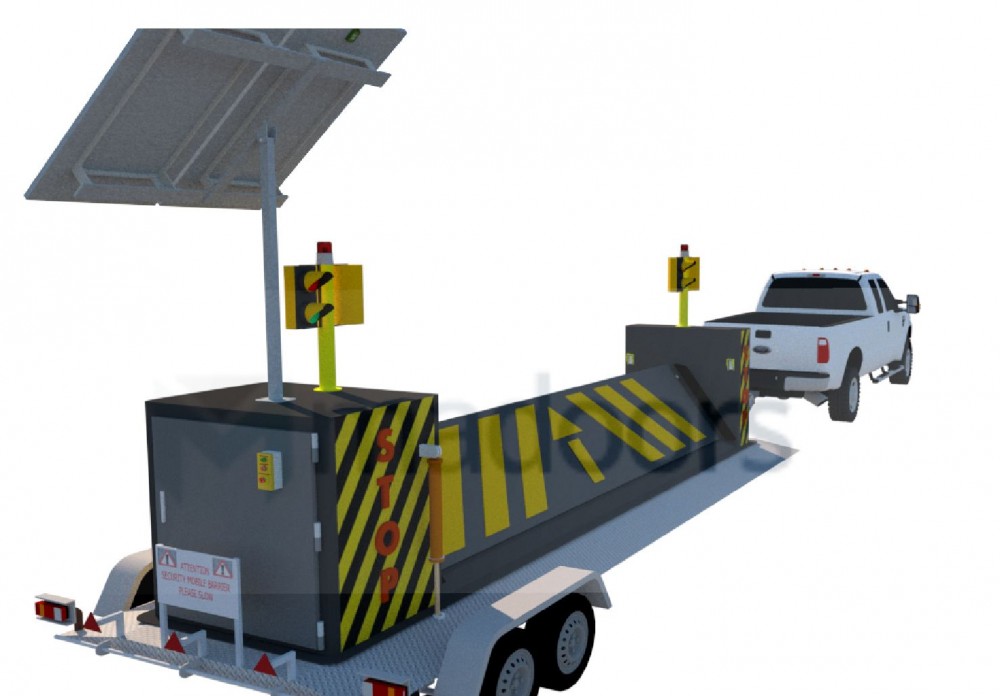

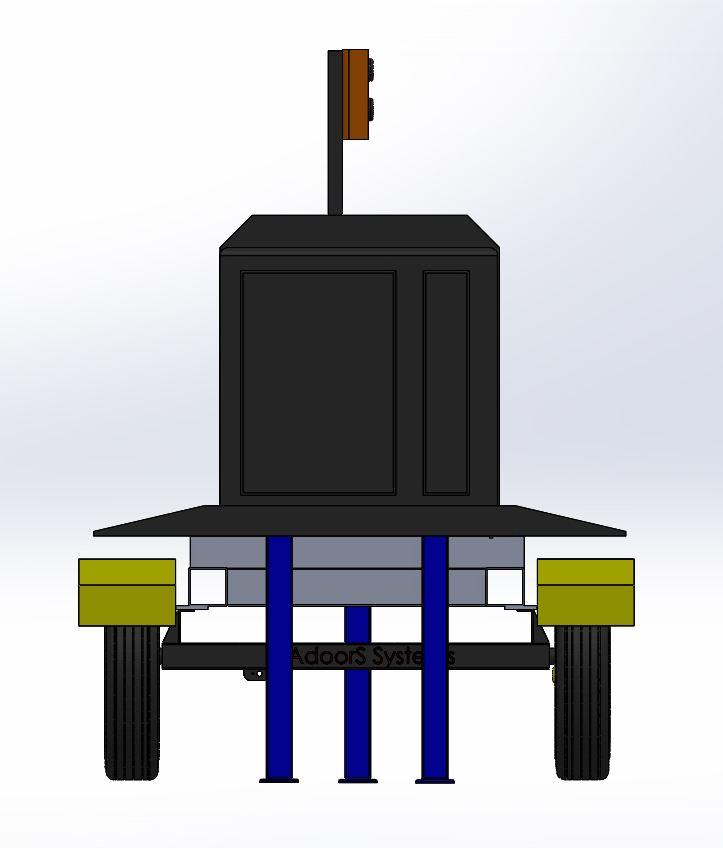

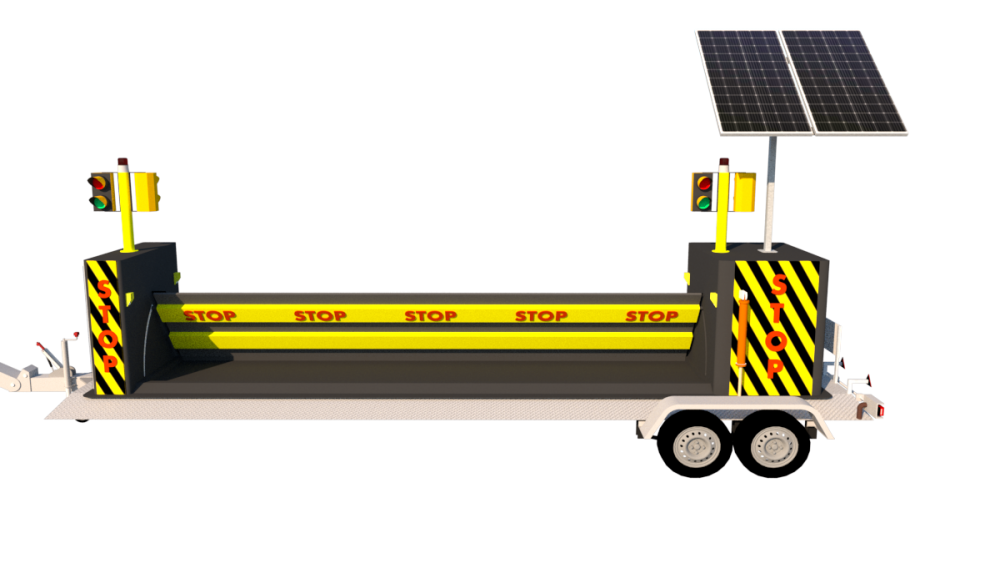

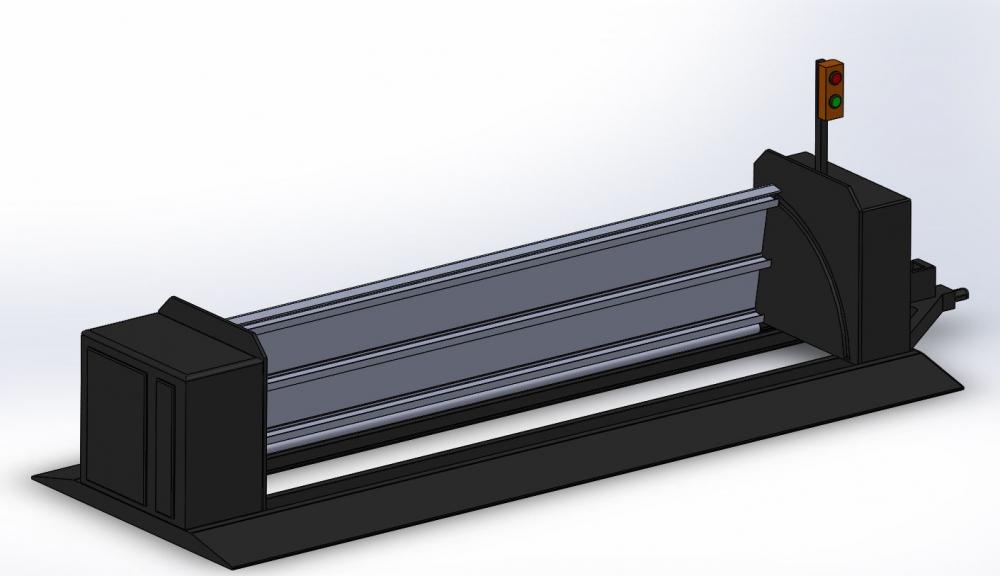

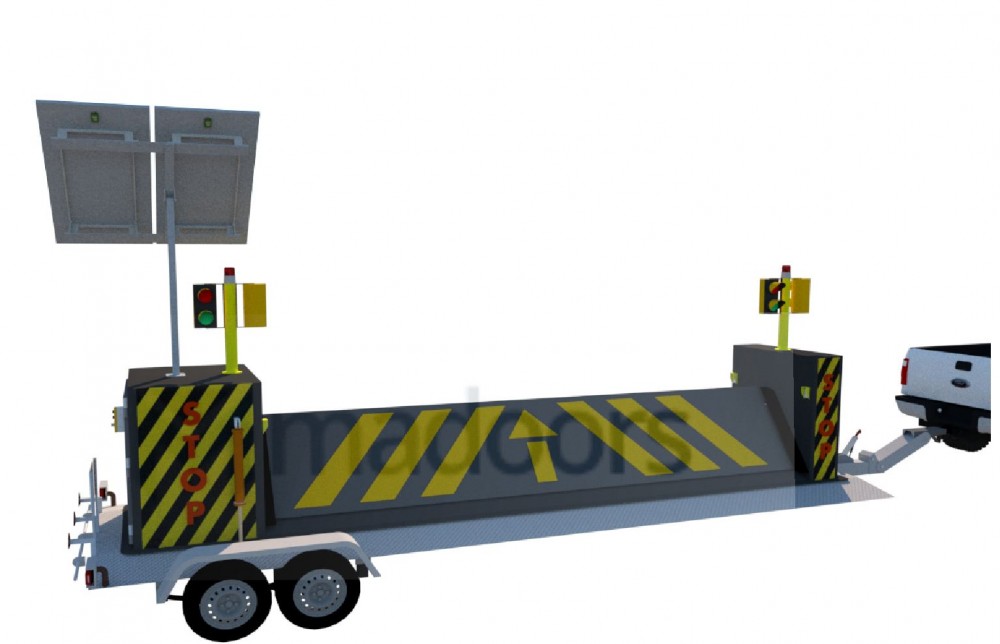

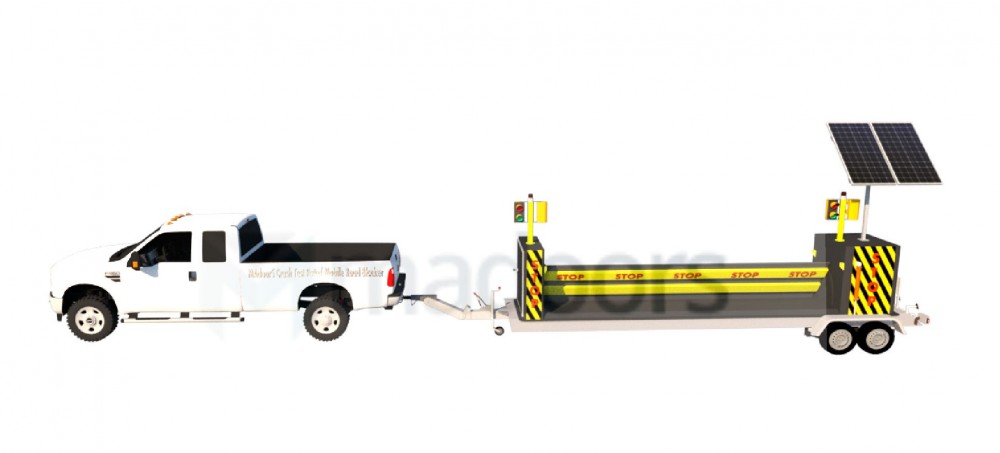

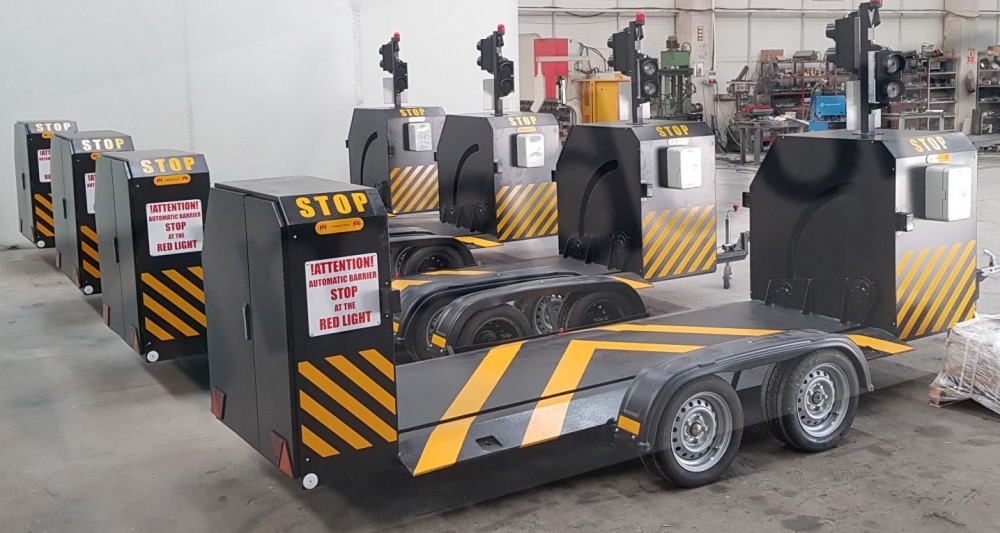

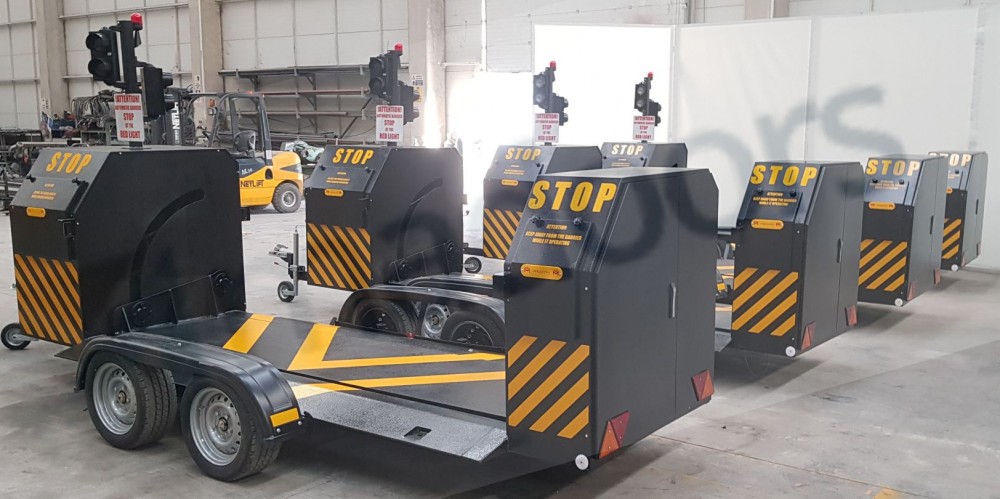

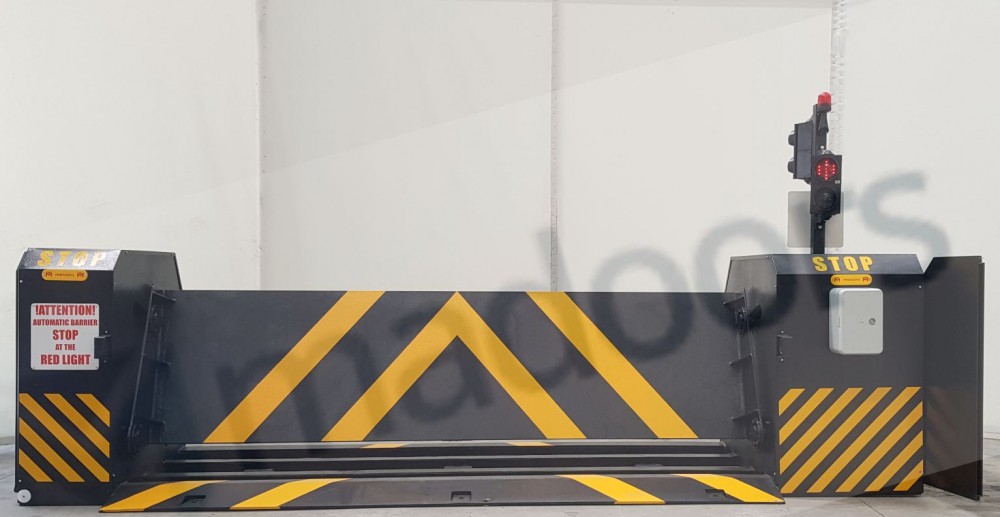

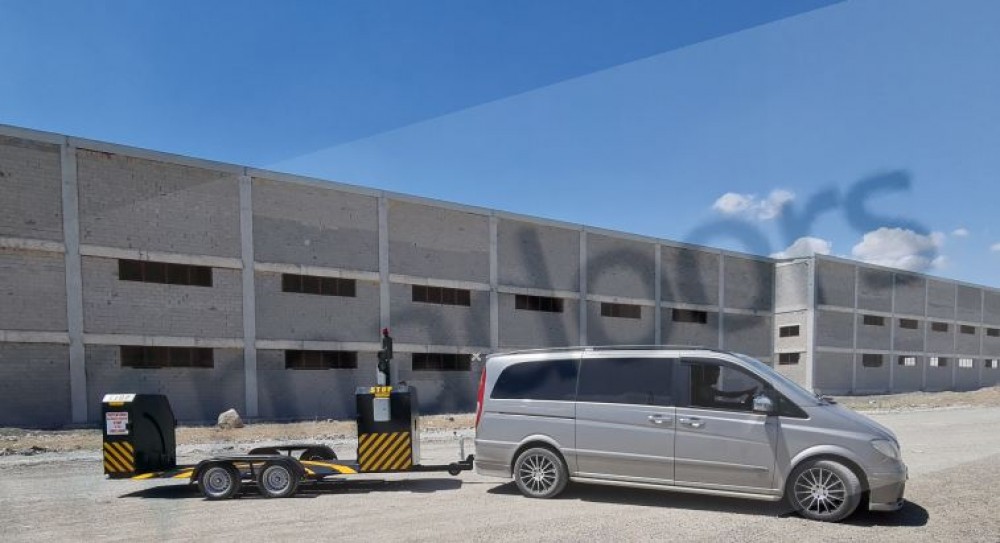

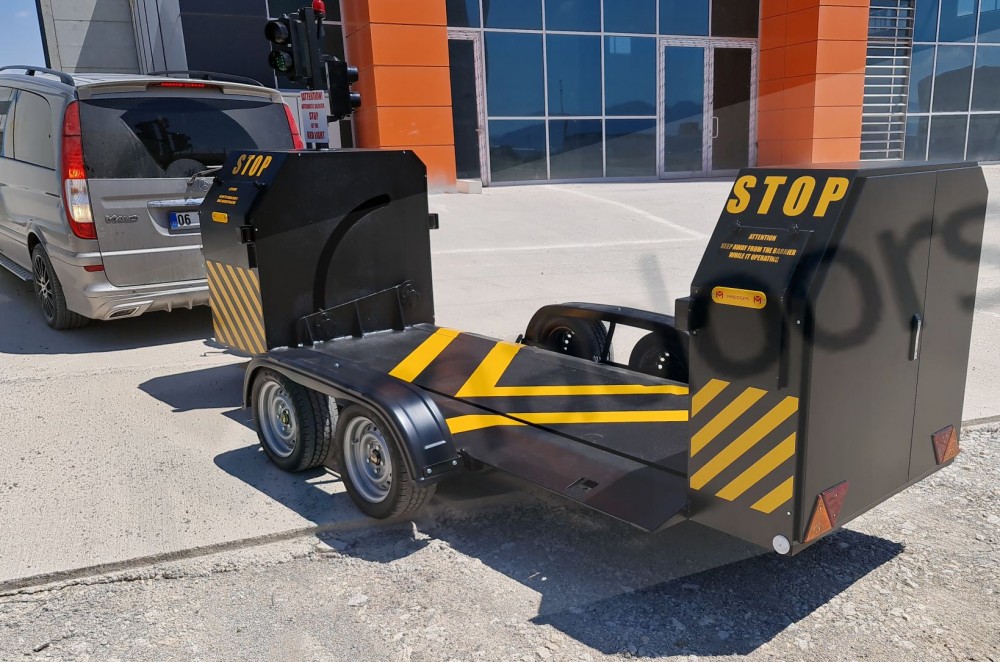

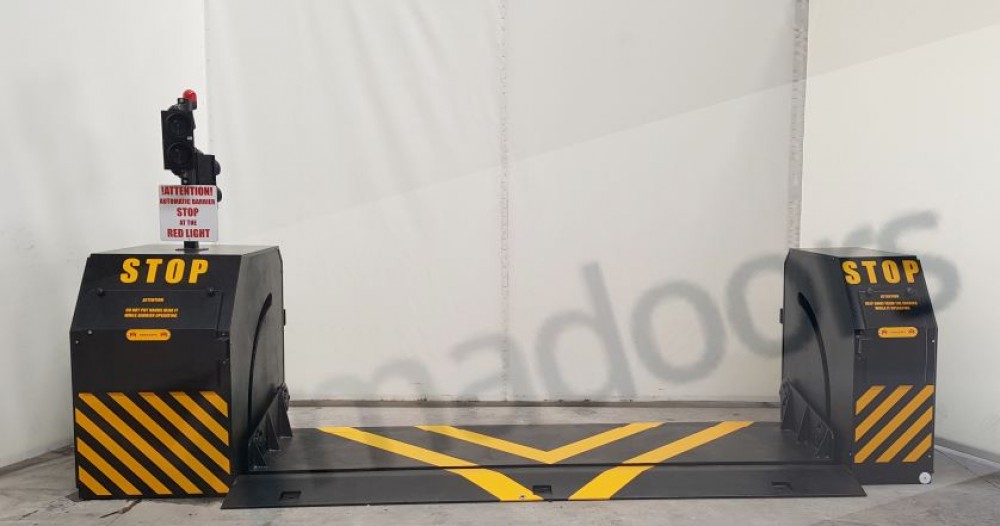

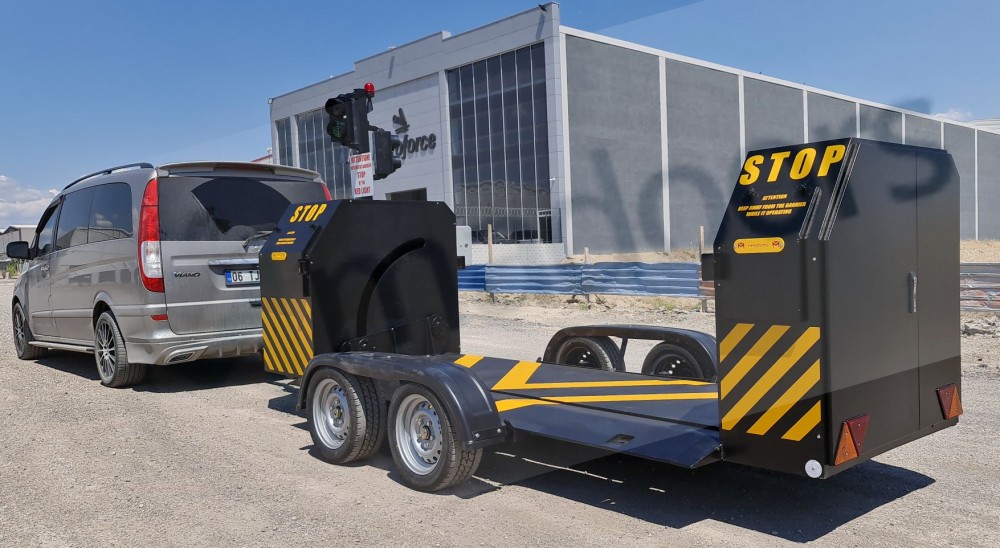

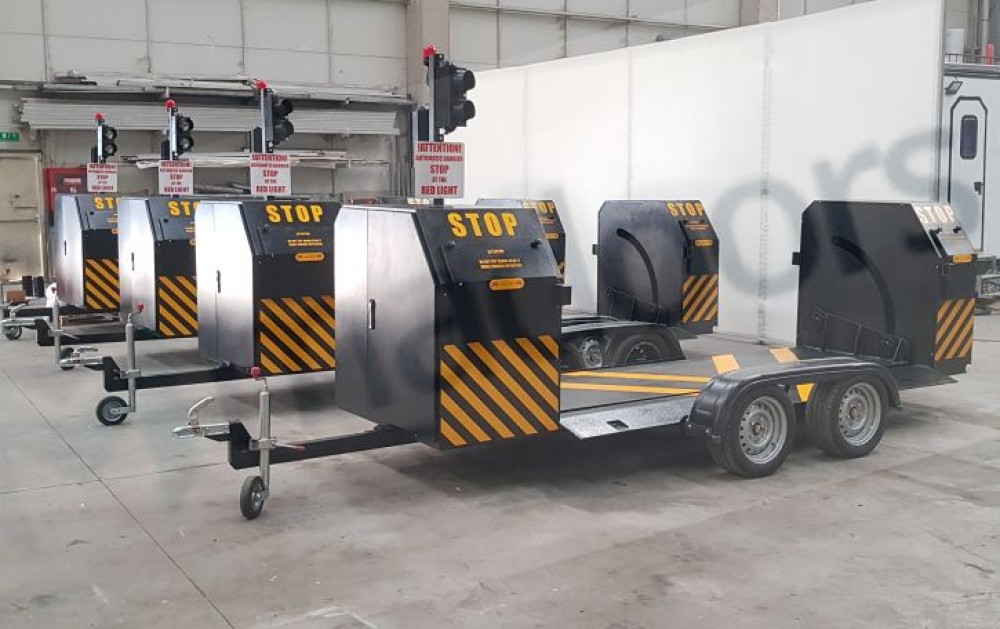

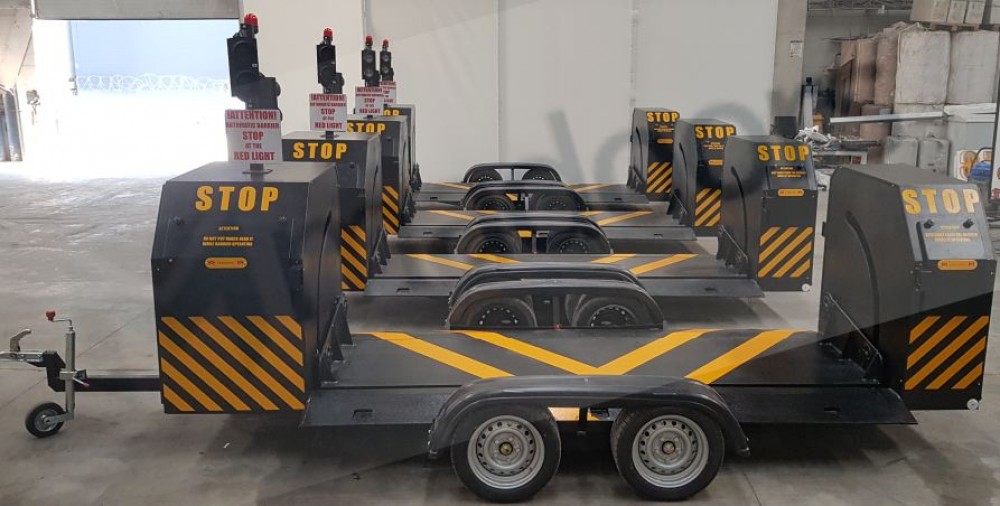

Surface Mounted Portable Road Blocker Photos


Surface Mounted Portable Road Blocker Datasheet
